Swellpro Splashdrone 4 Charger Power Cable
Swellpro Splashdrone 4 RC Barrel Power Cable
Swellpro Splashdrone 4 Micro USB Cable
Swellpro Splashdrone 4 Battery Data Cable
Swellpro Splashdrone 4 SDK Connector
Swellpro Splashdrone 4 Gimbal Connector
Swellpro Splashdrone 4 Payload Connector

SplashDrone 4 Cable Family

Sale price$15.00 USD

Shipping calculated at checkout

Please confirm what type of cable you need:

Please confirm what type of cable you need

mlveda_country:

mlveda_country

Quantity:

SplashDrone 4 Cable Family

Type Uses

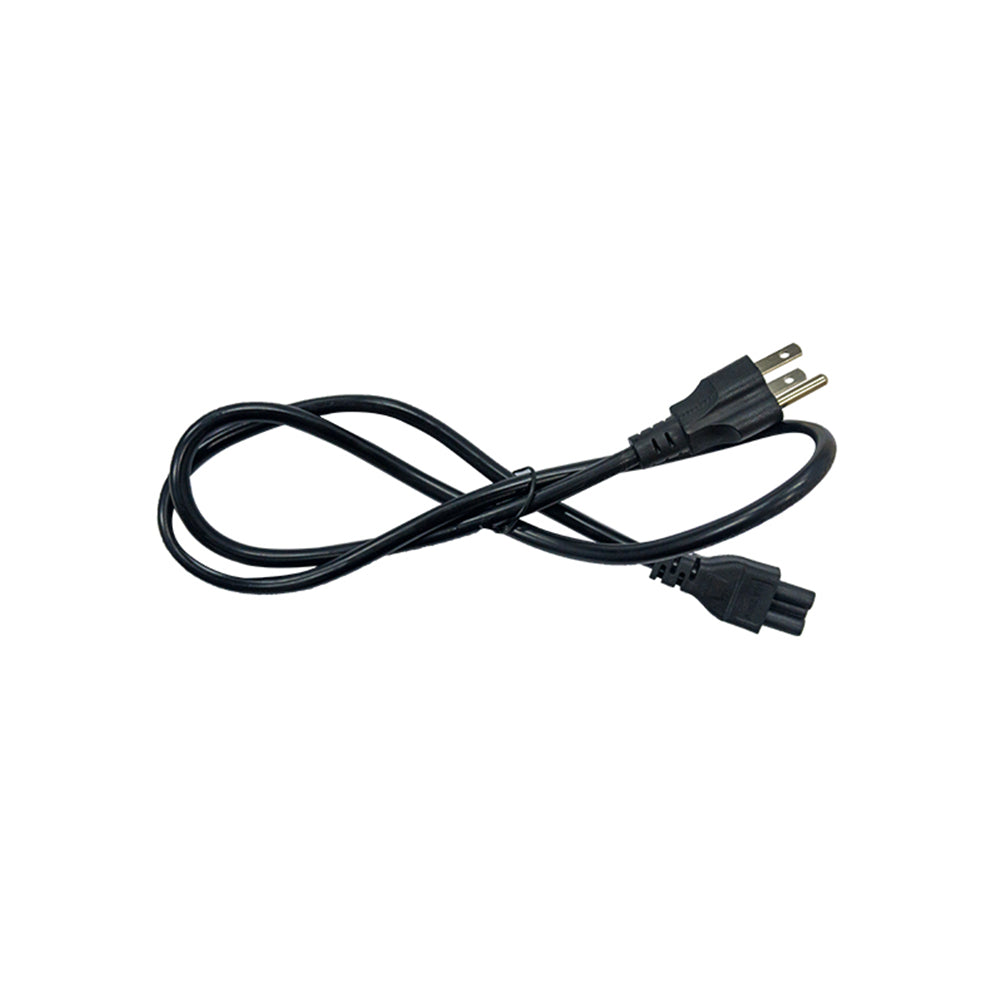

Splashdrone 4 Charger Power Cable To connect the power to the battery charger

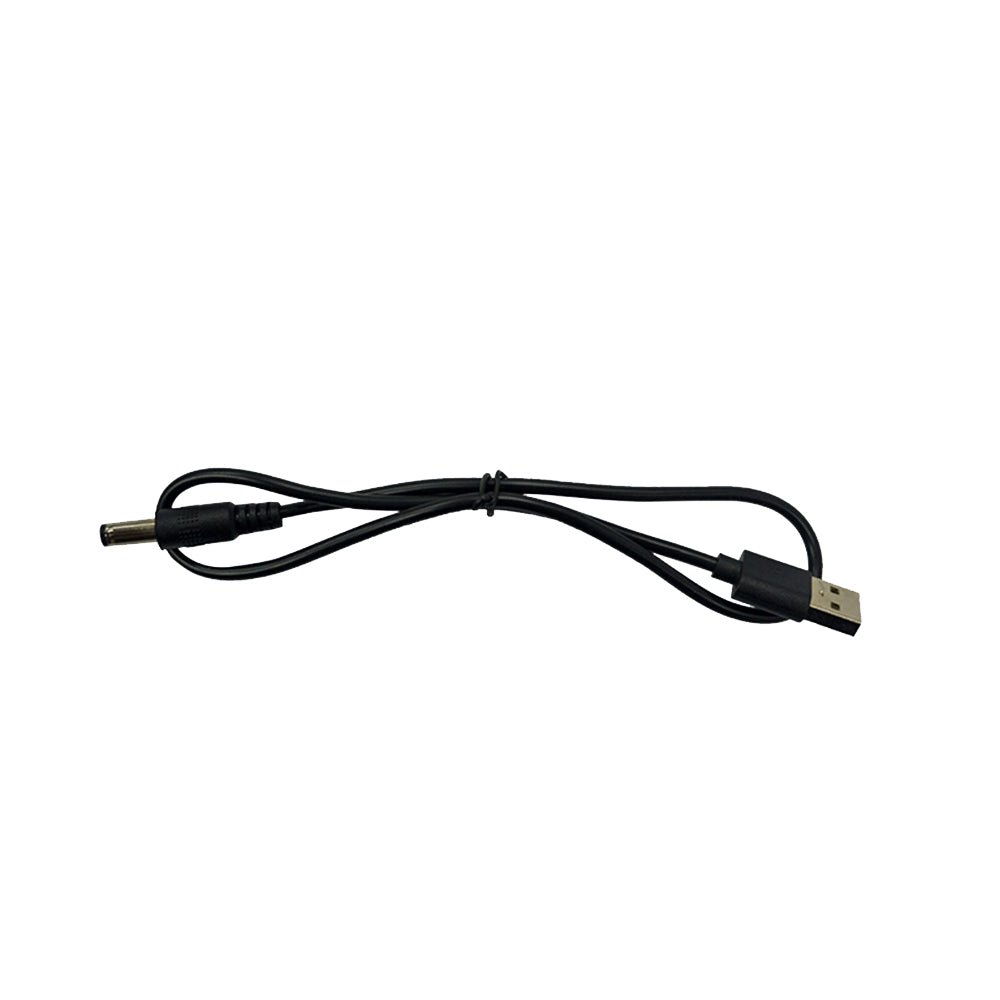

Splashdrone 4 RC Barrel Power Cable To connect the RC with the battery charger

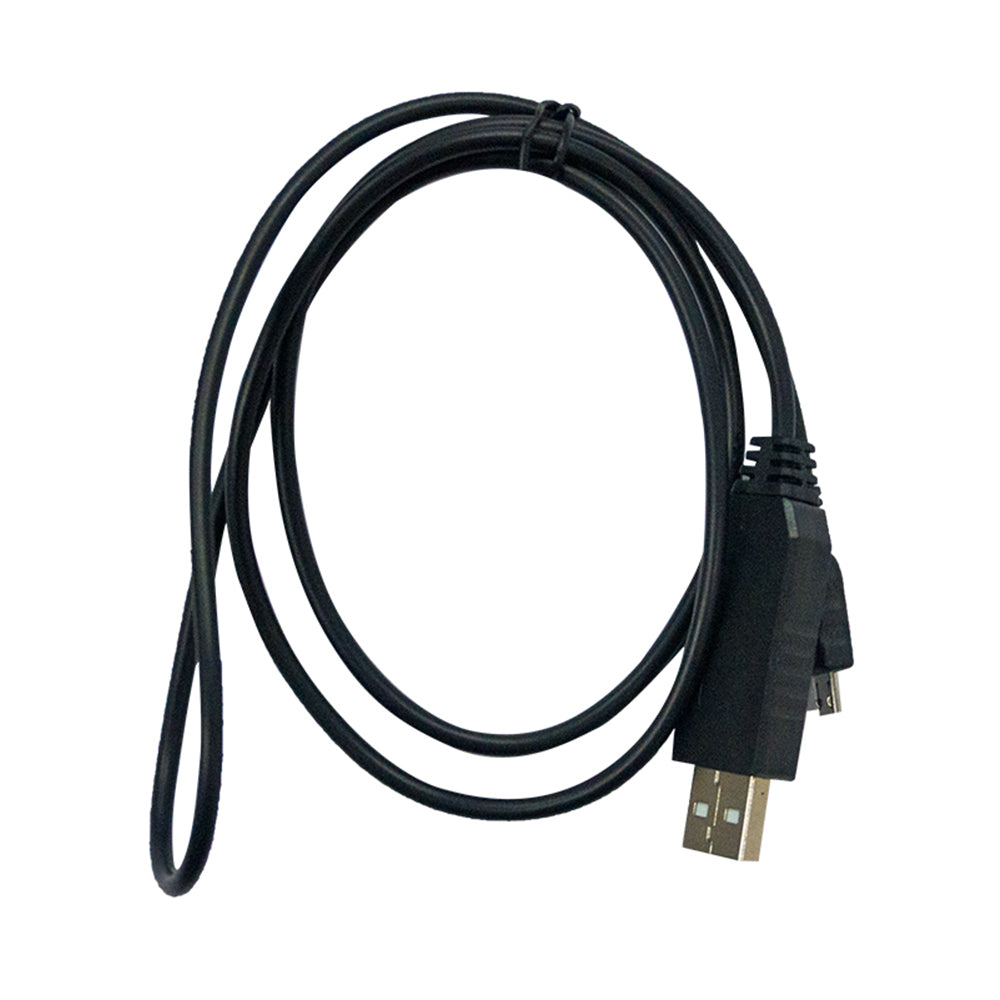

Splashdrone 4 Micro USB Cable To upgrade Splashdrone 4 firmware

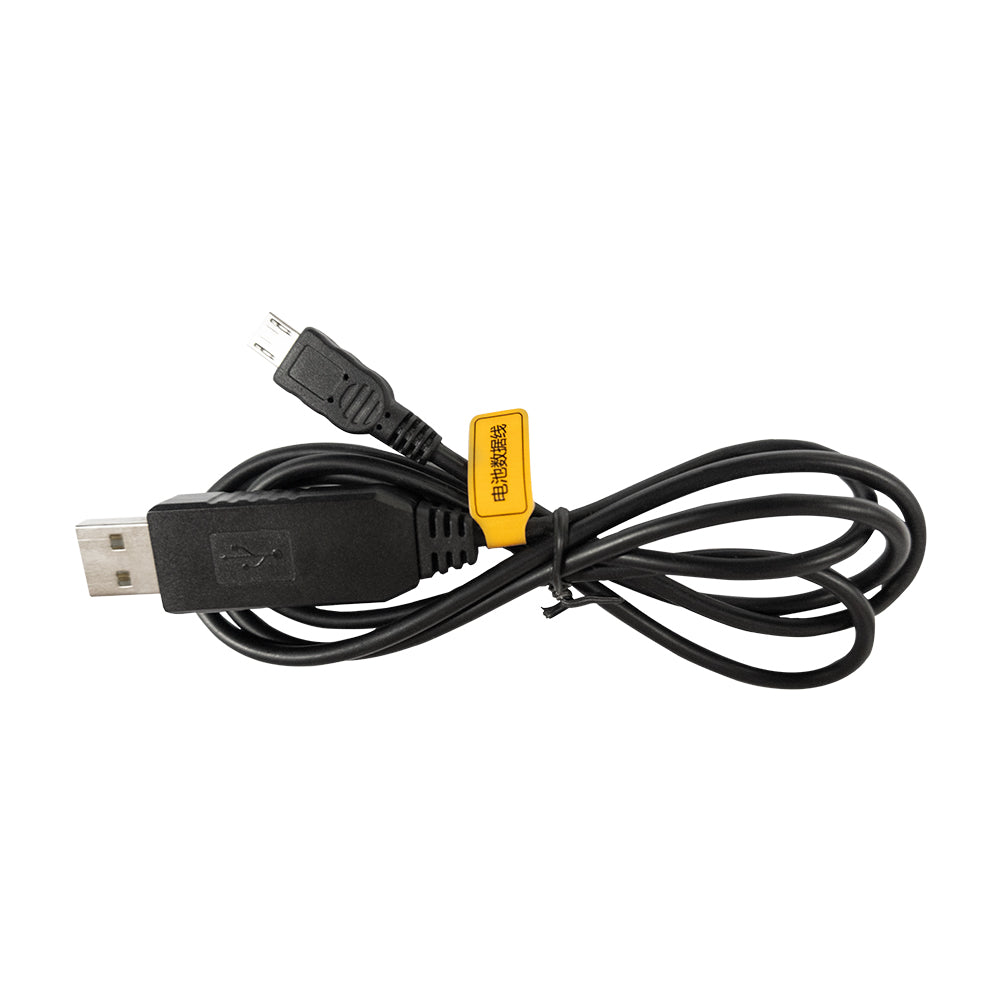

Splashdrone 4 Battery Data Cable To export the battery data

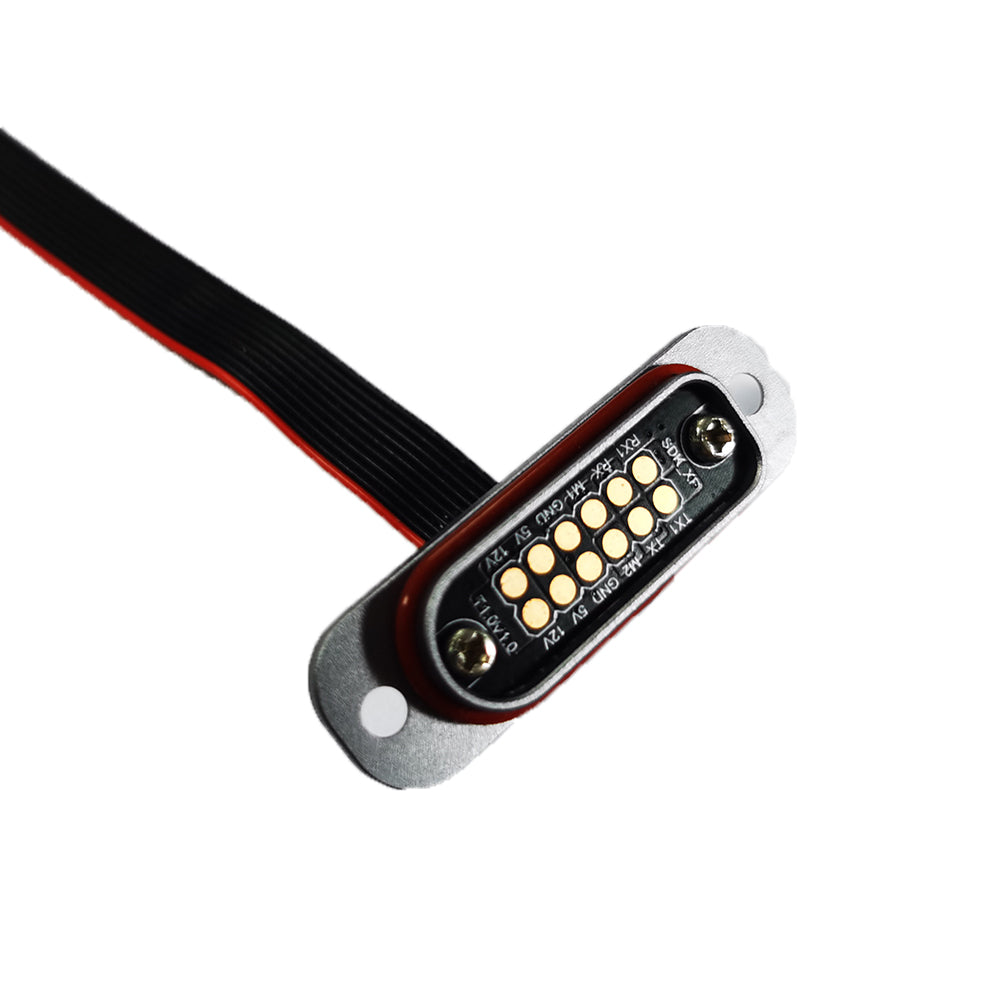

Splashdrone 4 SDK Connector Port

Pin Description
12V DC +12V/2A | +12V/2A output
5V DC +5V/2A | +5V/2A output
GND Ground
M1 PWM signal #1
M2 PWM signal #2
RX Serial port RX (transparent transmission receive from image transmission)
TX Serial port TX (transparent transmission transfer to image transmission)
RX1 Serial port RX (serial transmission receive from flight control)
TX1 Serial port TX (serial transmission transmit to flight control)

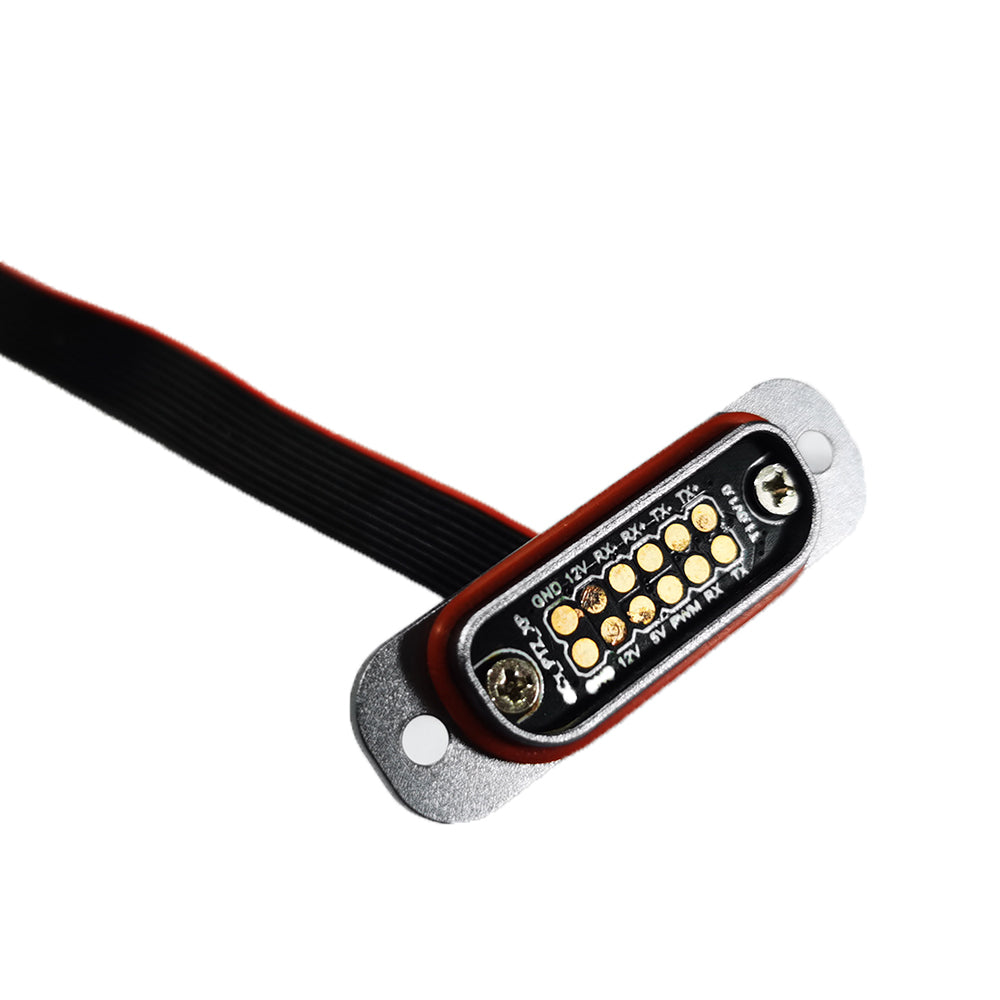

Splashdrone 4 Gimbal Connector Port

Pin  Description
GND Ground
12V DC +12V/2A | +12V/2A output
5V DC +5V/2A | +5V/2A output
PWM PWM signal (control camera photography and video recording)
TX5 Serial port TX (gimbal control)
RX5 Serial port RX (gimbal control)
RX- Ethernet RX-: data receiving negative terminal
RX+ Ethernet RX+: data receiving positive terminal
TX- Ethernet TX-: data sending negative terminal
TX+ Ethernet TX+: data sending positive terminal

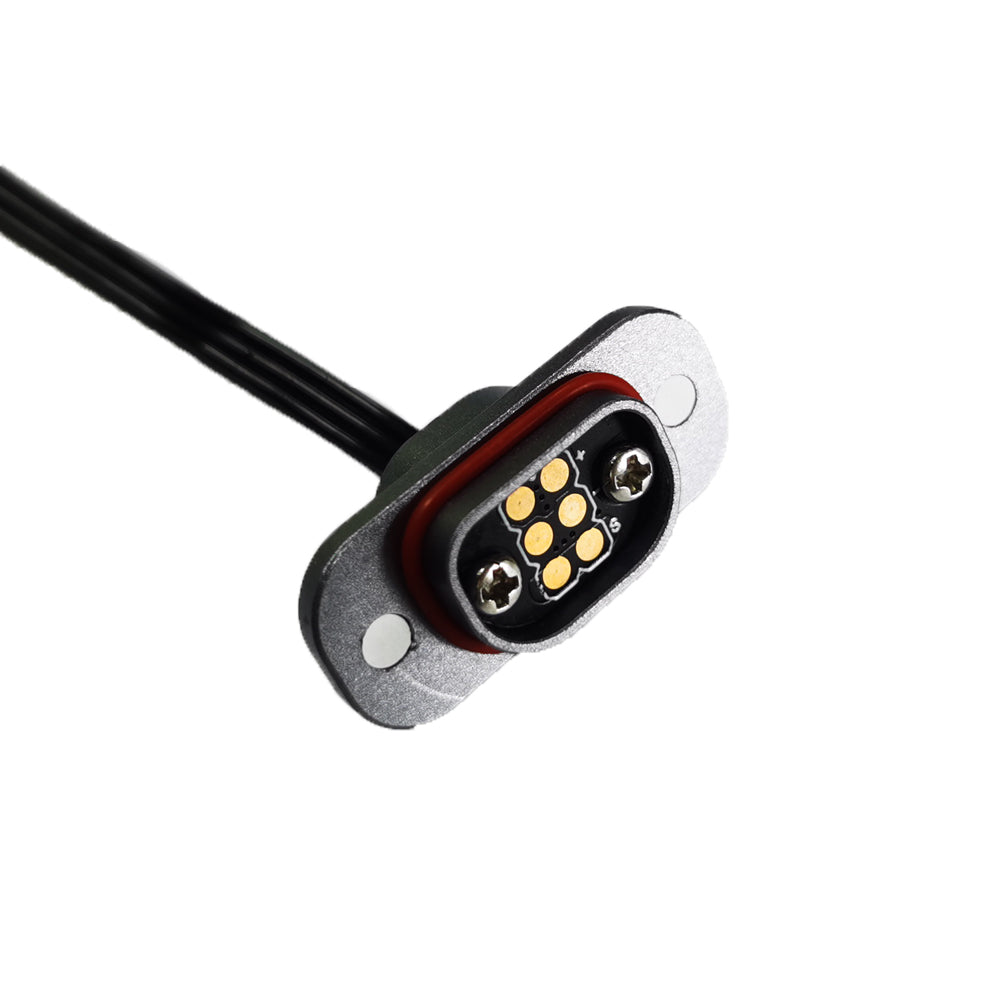

 Splashdrone 4 Payload Connector Port

Pin Description
5V DC +5V/2A | +5V/2A output
GND Ground
PWM PWM signal
